Cranes

We own $30M+ of cranes — more than any other builder in Australia.

Our fleet includes electric and diesel luffing, flat top, hammerhead, and mobile cranes, providing a range of options for even the most complex projects. Each of our cranes has been carefully selected for their speed and lifting capacities. Several of our tower cranes have been constructed in Australia to meet Hutchies’ specific requirements. All cranes are meticulously maintained and fitted with the latest safety gear.

15

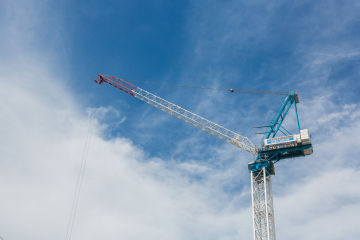

Luffing Cranes

11

Non-Luffing Cranes

3

Mobile Cranes

3

Recovery Cranes

#Luffing Cranes

M220DX

M220DX

Favelle Favco

These diesel luffing tower cranes were purpose-built for Hutchies. They have a maximum radius of 60m and have been fitted with the mandatory free fall prevention devices. The custom addition of 16t winches provides an increased lifting capacity of 29t at 15m. All towers are light strength ‘221’ type steel which are 400 long and 200 square, enabling more flexibility for internal climbing in lift shafts.

750

750

Favelle Favco

The Favelle Favco 750 diesel luffing cranes have a maximum boom length of 48.3m and a radius of 45m. They are fully compliant with legislated safety requirements.

CTL260

CTL260

Terex Comedil

Ideally suited to jobs in tight inner-city sites, the Terex CTL 260 electric luffing jib tower crane is one of the world’s most technologically advanced luffers. With a maximum jib length of 55m it can be luffed almost vertically, and needs very little room to rotate. It is ideal for tight sites that are very close to neighbouring properties as they make very little noise due to their electric motors.

STL420

STL420

Yongmao

Although it originates from a different stable, the Yongmao STL420 is like a big brother to the Comedil CTL260. Its maximum load of 24t makes it a real workhorse. The electric motor is helpful for noise minimisation.

#Non-Luffing Cranes

Non-luffing cranes, like hammerhead or flat top cranes, offer a better freestand capability than their luffing cousins. A non-luffer has greater free-stand for early construction activity before the need to tie into the structure as the building advances. It simply requires extra towers to raise the height. This can save time and resources in constrained programs.

CTT331

CTT331

Terex Comedil

Flexible, reliable, and technologically advanced, the Comedil CTT331 is ideal for multi-crane sites with a large footprint. It has a maximum lifting capacity of 16t, with 2.9t capacity when extended to its maximum length radius of 75m. It doesn’t require tie-bars, which allows for quicker and safer erection in a smaller space, and can freestand up to 96m without tying in to the structure.

CTT561

CTT561

Terex Comedil

Stable mate of the Comedil CTT331, the CTT561 has similar features in terms of flexibility and suitability for larger sites, with the added bonus of a greater capacity. It has a maximum jib radius of 84m, and maximum load of 24t (2.1t at the tip).

180 EC-H10

180 EC-H10

Liebherr

Liebherr cranes have an unmistakable silhouette. Hutchies’ EC-H is a mid-range lifter and is suitable for large projects, which can take advantage of the long jib length and wide swing radius.

#Mobile Cranes

Franna

Franna

Terex

The Australian made Franna crane is ideally suited to our environment and offers multi-purpose capability. Hutchies maintains two 25t and on 18t model of these non-slewing mobile cranes. Frannas can pick-and-carry a load, placing it wherever required. They are regularly used to assist with the positioning of precast concrete panels, tailing them up to help the tower crane lift them off the delivery truck and into place. Frannas are also used in the erection and dismantle of tower cranes.

#Recovery & Self Erector Cranes

CDK100

CDK100

Terex

With a 30m jib and lifting capacity up to 16t, this specialised recovery crane is an ideal solution for dismantling internal climbing cranes. Once the Terex CDK100 has dismantled the larger crane, it in turn is disassembled by a small stiff leg crane which can then be dismantled and transported via building lifts.

HDT80

HDT80

Potain by Manitowoc

Part of the range of self-erecting cranes from Potain this model has a tower height of 34m and maximum radius of 45m. It has a lift capacity of 6t and has three different mast heights and 10 different jib configurations, offering excellent flexibility. The Potain HDT80 is the largest self-erecting crane available on the market and can service up to eight storeys.

3T Derrick

3T Derrick

A&K

Hutchies’ A&K recovery crane has a lifting capacity of 3t at all radiuses with a boom length of up to 19.5m. This style of crane has been used in complex recovery operations, including Brisbane Skytower, where it was to remove Hutchies’ non-luffing crane on level 90.
